Opis

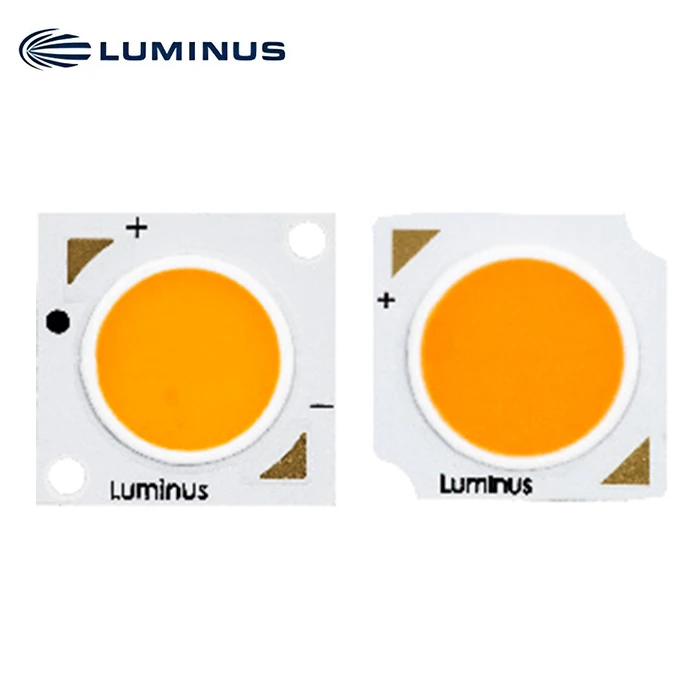

Generacija 4 CXM-11 COB polja Bijela LED
Karakteristike
• Tipičan visok izlaz lumena i efikasnost
• Preko 2020 lm, 134 LPW @ 3000K, 90CRI, Tj=85ºC
• Preko 2590 lm, 172 LPW @ 5000K, 70CRI, Tj=85ºC
• CCT opseg 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 5700K i 6500K
• AccuWhite High Colour Rendering, 97CRI Typ. Većina CCT-ova
• 3 SDCM standardno spajanje u boji, dostupno 2 SDCM bininga
• Odlična ujednačenost optičke emisije i postojanost boje iznad ugla
• Izuzetna dugoročna stabilnost boje
• Superiorna toplotna provodljivost za ravnomerno širenje toplote
• Ekološki prihvatljiv: usklađen sa RoHS i REACH-om
• UL prepoznat, fajl # E465703
Prijave
• Reflektori/tračnici
• Downlights
• Osvetljenje prodavnice
• Rasvjeta za ugostiteljstvo
• Arhitektura i specijalnost
• Ulična rasvjeta
• Osvetljenje parkinga i prostora
• Osvetljenje tunela
CT, CRI i R9 Vrijednosti
|
Korelirane temperature boje |
XX vrijednost |
CRI |
*R9 |
|
4000K, 5000K, 5700K, 6500K |
70 |
>70 |
- |
|
2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K |
80 |
>80 |
>0 |
|
2400K, 2700K, 3000K, 3500K, 4000K, 5000K |
90 |
>90 |
>50 |
|
2700K, 3000K |
95 |
>95 |
>85 |
|
3500K, 4000K, 5000K |
>75 |
Brojevi delova za naručivanje
Sljedeće tabele opisuju proizvode sa tipičnim fluksom i minimalnim fluksom izmjerenim na 450mA i specificiranim na Tj=85ºC. Vrijednosti na 25ºC su izračunate i prikazane samo kao referenca.
|
CCT |
Izlazni fluks (lm) |
Boja Rendering Indeks (min.) |
Broj dela za naručivanje |
|||
|
Tip. (85ºC) |
Min. (85ºC) |
Izračunato Tip. (25ºC) |
MacAdam Ellipse u 3 koraka |
MacAdam Ellipse u 2 koraka |
||
|
2400K |
1,520 |
1,414 |
1,670 |
90 |
CXM-11-24-90-36-AA40-F5-3 |
CXM-11-24-90-36-AA40-F5-2 |
|
2700K |
2,345 |
2,180 |
2,589 |
80 |
CXM-11-27-80-36-AA40-F5-3 |
CXM-11-27-80-36-AA40-F5-2 |
|
1,935 |
1,800 |
2,130 |
90 |
CXM-11-27-90-36-AA40-F5-3 |
CXM-11-27-90-36-AA40-F5-2 |
|
|
1,675 |
1,560 |
1,845 |
95 |
CXM-11-27-95-36-AA40-F5-3 |
CXM-11-27-95-36-AA40-F5-2 |
|
|
3000K |
2,385 |
2,220 |
2,625 |
80 |
CXM-11-30-80-36-AA40-F5-3 |
CXM-11-30-80-36-AA40-F5-2 |
|
2,020 |
1,880 |
2,220 |
90 |
CXM-11-30-90-36-AA40-F5-3 |
CXM-11-30-90-36-AA40-F5-2 |
|
|
1,740 |
1,615 |
1,915 |
95 |
CXM-11-30-95-36-AA40-F5-3 |
CXM-11-30-95-36-AA40-F5-2 |
|
|
3500K |
2,425 |
2,255 |
2,670 |
80 |
CXM-11-35-80-36-AA40-F5-3 |
CXM-11-35-80-36-AA40-F5-2 |
|
2,060 |
1,915 |
2,265 |
90 |
CXM-11-35-90-36-AA40-F5-3 |
CXM-11-35-90-36-AA40-F5-2 |
|
|
1,840 |
1,710 |
2,025 |
95 |
CXM-11-35-95-36-AA40-F5-3 |
CXM-11-35-95-36-AA40-F5-2 |
|
|
4000K |
2,525 |
2,350 |
2,780 |
70 |
CXM-11-40-70-36-AA40-F5-3 |
CXM-11-40-70-36-AA40-F5-2 |
|
2,440 |
2,270 |
2,685 |
80 |
CXM-11-40-80-36-AA40-F5-3 |
CXM-11-40-80-36-AA40-F5-2 |
|
|
2,120 |
1,970 |
2,330 |
90 |
CXM-11-40-90-36-AA40-F5-3 |
CXM-11-40-90-36-AA40-F5-2 |
|
|
1,925 |
1,790 |
2,120 |
95 |
CXM-11-40-95-36-AA40-F5-3 |
CXM-11-40-95-36-AA40-F5-2 |
|
|
5000K |
2,590 |
2,405 |
2,845 |
70 |
CXM-11-50-70-36-AA40-F5-3 |
|
|
2,455 |
2,285 |
2,700 |
80 |
CXM-11-50-80-36-AA40-F5-3 |
||
|
2,220 |
2,065 |
2,440 |
90 |
CXM-11-50-90-36-AA40-F5-3 |
||
|
1,920 |
1,785 |
2,110 |
95 |
CXM-11-50-95-36-AA40-F5-3 |
||
|
5700K |
2,565 |
2,285 |
2,820 |
70 |
CXM-11-57-70-36-AA40-F5-3 |
|
|
2,425 |
2,255 |
2,670 |
80 |
CXM-11-57-80-36-AA40-F5-3 |
||
|
6500K |
2,405 |
2,235 |
2,645 |
70 |
CXM-11-65-70-36-AA40-F5-3 |
|
|
2,345 |
2,180 |
2,580 |
80 |
CXM-11-65-80-36-AA40-F5-3 |
||
Brojevi delova za naručivanje
Sljedeće tabele opisuju proizvode sa tipičnim fluksom i minimalnim fluksom izmjerenim na 450mA i specificiranim na Tj=85ºC. Vrijednosti na 25ºC su izračunate i prikazane samo kao referenca.
|
CCT |
Izlazni fluks (lm) |
Boja Rendering Indeks (min.) |
Broj dela za naručivanje |
|||
|
Tip. (85ºC) |
Min. (85ºC) |
Izračunato Tip. (25ºC) |
MacAdam Ellipse u 3 koraka |
MacAdam Ellipse u 2 koraka |
||
|
2400K |
1,520 |
1,414 |
1,670 |
90 |
CXM-11-24-90-36-AC40-F5-3 |
CXM-11-24-90-36-AC40-F5-2 |
|
2700K |
2,345 |
2,180 |
2,589 |
80 |
CXM-11-27-80-36-AC40-F5-3 |
CXM-11-27-80-36-AC40-F5-2 |
|
1,935 |
1,800 |
2,130 |
90 |
CXM-11-27-90-36-AC40-F5-3 |
CXM-11-27-90-36-AC40-F5-2 |
|
|
1,675 |
1,560 |
1,845 |
95 |
CXM-11-27-95-36-AC40-F5-3 |
CXM-11-27-95-36-AC40-F5-2 |
|
|
3000K |
2,385 |
2,220 |
2,625 |
80 |
CXM-11-30-80-36-AC40-F5-3 |
CXM-11-30-80-36-AC40-F5-2 |
|
2,020 |
1,880 |
2,220 |
90 |
CXM-11-30-90-36-AC40-F5-3 |
CXM-11-30-90-36-AC40-F5-2 |
|
|
1,740 |
1,615 |
1,915 |
95 |
CXM-11-30-95-36-AC40-F5-3 |
CXM-11-30-95-36-AC40-F5-2 |
|
|
3500K |
2,425 |
2,255 |
2,670 |
80 |
CXM-11-35-80-36-AC40-F5-3 |
CXM-11-35-80-36-AC40-F5-2 |
|
2,060 |
1,915 |
2,265 |
90 |
CXM-11-35-90-36-AC40-F5-3 |
CXM-11-35-90-36-AC40-F5-2 |
|
|
1,840 |
1,710 |
2,025 |
95 |
CXM-11-35-95-36-AC40-F5-3 |
CXM-11-35-95-36-AC40-F5-2 |
|
|
4000K |
2,525 |
2,350 |
2,780 |
70 |
CXM-11-40-70-36-AC40-F5-3 |
CXM-11-40-70-36-AC40-F5-2 |
|
2,440 |
2,270 |
2,685 |
80 |
CXM-11-40-80-36-AC40-F5-3 |
CXM-11-40-80-36-AC40-F5-2 |
|
|
2,120 |
1,970 |
2,330 |
90 |
CXM-11-40-90-36-AC40-F5-3 |
CXM-11-40-90-36-AC40-F5-2 |
|
|
1,925 |
1,790 |
2,120 |
95 |
CXM-11-40-95-36-AC40-F5-3 |
CXM-11-40-95-36-AC40-F5-2 |
|
|
5000K |
2,590 |
2,405 |
2,845 |
70 |
CXM-11-50-70-36-AC40-F5-3 |
|
|
2,455 |
2,285 |
2,700 |
80 |
CXM-11-50-80-36-AC40-F5-3 |
||
|
2,220 |
2,065 |
2,440 |
90 |
CXM-11-50-90-36-AC40-F5-3 |
||
|
1,920 |
1,785 |
2,110 |
95 |
CXM-11-50-95-36-AC40-F5-3 |
||
|
5700K |
2,565 |
2,285 |
2,820 |
70 |
CXM-11-57-70-36-AC40-F5-3 |
|
|
2,425 |
2,255 |
2,670 |
80 |
CXM-11-57-80-36-AC40-F5-3 |
||
|
6500K |
2,405 |
2,235 |
2,645 |
70 |
CXM-11-65-70-36-AC40-F5-3 |
|
|
2,345 |
2,180 |
2,580 |
80 |
CXM-11-65-80-36-AC40-F5-3 |
||
Operating Karakteristike1
|
Parametar |
Simbol |
Minimum |
Tipično |
Maksimum |
Jedinica |
|
Forward Current2 |
Ako |
450 |
1,300 |
mA |
|
|
Forward Voltage3 |
Vf |
31.0 |
33.7 |
37.0 |
V |
|
Snaga |
15.1 |
49.3 |
W |
||
|
Temperatura radnog kućišta |
T c |
120 |
ºC |
||
|
Prečnik površine koja emituje svetlost |
LES |
11.6 |
mm |
||
|
Toplinska otpornost (spoj-na-kućište) |
Θjc |
0.29 |
ºC/W |
||
|
Temperatura spoja |
Tj |
140 |
ºC |
||
|
Ugao gledanja |
120 |
Stepen |
