Opis

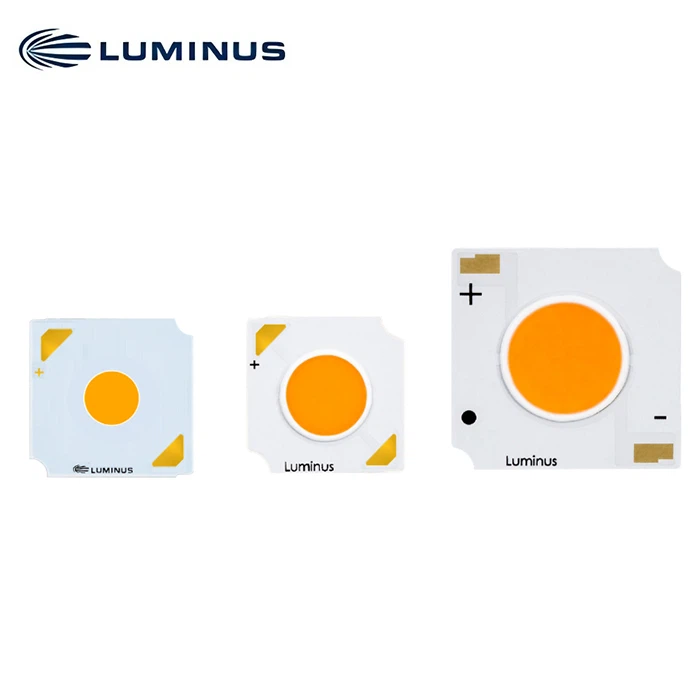

VISOKE GUSTOĆE GEN 4
Dizajniran za najveću gustinu lumena po površini emitera pružajući najveću snagu središnjeg-snopa-svijeće-(CBCP).
APLIKACIJE
- Maloprodaja/komercijala
- Track/Spot
- Accent Lighting
KARAKTERISTIKE
- Robusto tehnologija za industriju-vodeće održavanje lumena i stabilnost boje tokom vremena pri velikoj struji i do Tc=120 stepena
- Širok izbor CCT i CRI
- >35,000 cd na 10 stepeni spot
- Lumen Density >7.000 lm/cm2
PREDNOSTI
- Sav kvalitet boja Standard Gen 4 COB i sa većom gustinom lumena
- Velika gustina lumena omogućava manju optičku i/ili manju tačku snopa
- Replicira lumenski udar metal-halogenih izvora svjetlosti
PRODUCT SELECTOR
Trebate pomoć pri odabiru proizvoda? Kalkulator lumena za COB nizove
| Slika proizvoda | Porodica proizvoda | LES (mm) | Veličina podloge (mm) | Raspon snage (W) | Raspon fluksa @ 3000K 80CRI |
|---|---|---|---|---|---|
 |
CHM-4-BH | 4.5 | 13.5 * 13.5 | 7.5 - 13.7 | 775 - 1350 |
 |
CHM-6-BH | 6.3 | 13.5 * 13.5 | 15.2 - 27.2 | 1560 - 2570 |
 |
CHM-9-BH | 9 | 19 * 19 | 24.3 - 57 | 2840 - 5250 |
Brojevi delova za naručivanje
Sljedeće tabele opisuju proizvode sa tipičnim fluksom i minimalnim fluksom izmjerenim na 200mA i specificiranim na Tj=85ºC. Vrijednosti na 25ºC su izračunate i prikazane samo kao referenca.
|
CCT |
Izlazni fluks (lm) |
Boja Rendering Indeks (min.) |
Broj dela za naručivanje |
|||
|
Tip. (85ºC) |
Min. (85ºC) |
Izračunato Tip. (25ºC) |
MacAdam Ellipse u 3 koraka |
MacAdam Ellipse u 2 koraka |
||
|
2200K |
530 |
490 |
585 |
90 |
CHM-4-22-90-36-BH40-F5-3 |
CHM-4-22-90-36-BH40-F5-2 |
|
2400K |
600 |
560 |
660 |
90 |
CHM-4-24-90-36-BH40-F5-3 |
CHM-4-24-90-36-BH40-F5-2 |
|
2700K |
720 |
670 |
790 |
80 |
CHM-4-27-80-36-BH40-F5-3 |
CHM-4-27-80-36-BH40-F5-2 |
|
630 |
585 |
695 |
90 |
CHM-4-27-90-36-BH40-F5-3 |
CHM-4-27-90-36-BH40-F5-2 |
|
|
525 |
490 |
580 |
95 |
CHM-4-27-95-36-BH40-F5-3 |
CHM-4-27-95-36-BH40-F5-2 |
|
|
2700KSensus |
615 |
570 |
675 |
90 |
CHM-4-27-90-36-BH42-F5-3 |
CHM-4-27-90-36-BH42-F5-2 |
|
3000K |
755 |
700 |
830 |
80 |
CHM-4-30-80-36-BH40-F5-3 |
CHM-4-30-80-36-BH40-F5-2 |
|
655 |
610 |
720 |
90 |
CHM-4-30-90-36-BH40-F5-3 |
CHM-4-30-90-36-BH40-F5-2 |
|
|
565 |
525 |
620 |
95 |
CHM-4-30-95-36-BH40-F5-3 |
CHM-4-30-95-36-BH40-F5-2 |
|
|
3000KSensus |
640 |
595 |
705 |
90 |
CHM-4-30-90-36-BH42-F5-3 |
CHM-4-30-90-36-BH42-F5-2 |
|
550 |
510 |
605 |
95 |
CHM-4-30-95-36-BH42-F5-3 |
CHM-4-30-95-36-BH42-F5-2 |
|
|
3500K |
800 |
745 |
880 |
80 |
CHM-4-35-80-36-BH40-F5-3 |
CHM-4-35-80-36-BH40-F5-2 |
|
655 |
610 |
720 |
90 |
CHM-4-35-90-36-BH40-F5-3 |
CHM-4-35-90-36-BH40-F5-2 |
|
|
550 |
510 |
605 |
95 |
CHM-4-35-95-36-BH40-F5-3 |
CHM-4-35-95-36-BH40-F5-2 |
|
|
3500KSensus |
640 |
595 |
705 |
90 |
CHM-4-35-90-36-BH42-F5-3 |
CHM-4-35-90-36-BH42-F5-2 |
|
4000K |
775 |
720 |
855 |
80 |
CHM-4-40-80-36-BH40-F5-3 |
CHM-4-40-80-36-BH40-F5-2 |
|
705 |
655 |
775 |
90 |
CHM-4-40-90-36-BH40-F5-3 |
CHM-4-40-90-36-BH40-F5-2 |
|
|
620 |
575 |
680 |
95 |
CHM-4-40-95-36-BH40-F5-3 |
CHM-4-40-95-36-BH40-F5-2 |
|
|
5000K |
790 |
735 |
870 |
80 |
CHM-4-50-80-36-BH40-F5-3 |
CHM-4-50-80-36-BH40-F5-2 |
|
705 |
655 |
775 |
90 |
CHM-4-50-90-36-BH40-F5-3 |
CHM-4-50-90-36-BH40-F5-2 |
|
|
620 |
575 |
680 |
95 |
CHM-4-50-95-36-BH40-F5-3 |
CHM-4-50-95-36-BH40-F5-2 |
|
Brojevi delova za naručivanje
Sljedeće tabele opisuju proizvode sa tipičnim fluksom i minimalnim fluksom izmjerenim na 400mA i specificiranim na Tj=85ºC. Vrijednosti na 25ºC su izračunate i prikazane samo kao referenca.
|
CCT |
Izlazni fluks (lm) |
Boja Rendering Indeks (min.) |
Broj dela za naručivanje |
|||
|
Tip. (85ºC) |
Min. (85ºC) |
Izračunato Tip. (25ºC) |
MacAdam Ellipse u 3 koraka |
MacAdam Ellipse u 2 koraka |
||
|
2200K |
530 |
490 |
585 |
90 |
CHM-4-22-90-18-BH40-F5-3 |
CHM-4-22-90-18-BH40-F5-2 |
|
2400K |
600 |
560 |
660 |
90 |
CHM-4-24-90-18-BH40-F5-3 |
CHM-4-24-90-18-BH40-F5-2 |
|
2700K |
720 |
670 |
790 |
80 |
CHM-4-27-80-18-BH40-F5-3 |
CHM-4-27-80-18-BH40-F5-2 |
|
630 |
585 |
695 |
90 |
CHM-4-27-90-18-BH40-F5-3 |
CHM-4-27-90-18-BH40-F5-2 |
|
|
525 |
490 |
580 |
95 |
CHM-4-27-95-18-BH40-F5-3 |
CHM-4-27-95-18-BH40-F5-2 |
|
|
2700KSensus |
615 |
570 |
675 |
90 |
CHM-4-27-90-18-BH42-F5-3 |
CHM-4-27-90-18-BH42-F5-2 |
|
3000K |
755 |
700 |
830 |
80 |
CHM-4-30-80-18-BH40-F5-3 |
CHM-4-30-80-18-BH40-F5-2 |
|
655 |
610 |
720 |
90 |
CHM-4-30-90-18-BH40-F5-3 |
CHM-4-30-90-18-BH40-F5-2 |
|
|
565 |
525 |
620 |
95 |
CHM-4-30-95-18-BH40-F5-3 |
CHM-4-30-95-18-BH40-F5-2 |
|
|
3000KSensus |
640 |
595 |
705 |
90 |
CHM-4-30-90-18-BH42-F5-3 |
CHM-4-30-90-18-BH42-F5-2 |
|
550 |
510 |
605 |
95 |
CHM-4-30-95-18-BH42-F5-3 |
CHM-4-30-95-18-BH42-F5-2 |
|
|
3500K |
800 |
745 |
880 |
80 |
CHM-4-35-80-18-BH40-F5-3 |
CHM-4-35-80-18-BH40-F5-2 |
|
655 |
610 |
720 |
90 |
CHM-4-35-90-18-BH40-F5-3 |
CHM-4-35-90-18-BH40-F5-2 |
|
|
550 |
510 |
605 |
95 |
CHM-4-35-95-18-BH40-F5-3 |
CHM-4-35-95-18-BH40-F5-2 |
|
|
3500KSensus |
640 |
595 |
705 |
90 |
CHM-4-35-90-18-BH42-F5-3 |
CHM-4-35-90-18-BH42-F5-2 |
|
4000K |
775 |
720 |
855 |
80 |
CHM-4-40-80-18-BH40-F5-3 |
CHM-4-40-80-18-BH40-F5-2 |
|
705 |
655 |
775 |
90 |
CHM-4-40-90-18-BH40-F5-3 |
CHM-4-40-90-18-BH40-F5-2 |
|
|
620 |
575 |
680 |
95 |
CHM-4-40-95-18-BH40-F5-3 |
CHM-4-40-95-18-BH40-F5-2 |
|
|
5000K |
790 |
735 |
870 |
80 |
CHM-4-50-80-18-BH40-F5-3 |
CHM-4-50-80-18-BH40-F5-2 |
|
705 |
655 |
775 |
90 |
CHM-4-50-90-18-BH40-F5-3 |
CHM-4-50-90-18-BH40-F5-2 |
|
|
620 |
575 |
680 |
95 |
CHM-4-50-95-18-BH40-F5-3 |
CHM-4-50-95-18-BH40-F5-2 |
|
Brojevi delova za naručivanje
Sljedeće tabele opisuju proizvode sa tipičnim fluksom i minimalnim fluksom izmjerenim na 400mA i specificiranim na Tj=85ºC. Vrijednosti na 25ºC su izračunate i prikazane samo kao referenca.
|
CCT |
Izlazni fluks (lm) |
Boja Rendering Indeks (min.) |
Broj dela za naručivanje |
|||
|
Tip. (85ºC) |
Min. (85ºC) |
Izračunato Tip. (25ºC) |
MacAdam Ellipse u 3 koraka |
MacAdam Ellipse u 2 koraka |
||
|
2200K |
1165 |
1085 |
1285 |
90 |
CHM-6-22-90-36-BH40-F5-3 |
CHM-6-22-90-36-BH40-F5-2 |
|
2400K |
1240 |
1150 |
1360 |
90 |
CHM-6-24-90-36-BH40-F5-3 |
CHM-6-24-90-36-BH40-F5-2 |
|
2700K |
1490 |
1385 |
1640 |
80 |
CHM-6-27-80-36-BH40-F5-3 |
CHM-6-27-80-36-BH40-F5-2 |
|
1300 |
1205 |
1430 |
90 |
CHM-6-27-90-36-BH40-F5-3 |
CHM-6-27-90-36-BH40-F5-2 |
|
|
1085 |
1010 |
1195 |
95 |
CHM-6-27-95-36-BH40-F5-3 |
CHM-6-27-95-36-BH40-F5-2 |
|
|
2700KSensus |
1260 |
1175 |
1385 |
90 |
CHM-6-27-90-36-BH42-F5-3 |
CHM-6-27-90-36-BH42-F5-2 |
|
3000K |
1560 |
1450 |
1715 |
80 |
CHM-6-30-80-36-BH40-F5-3 |
CHM-6-30-80-36-BH40-F5-2 |
|
1355 |
1260 |
1490 |
90 |
CHM-6-30-90-36-BH40-F5-3 |
CHM-6-30-90-36-BH40-F5-2 |
|
|
1170 |
1085 |
1285 |
95 |
CHM-6-30-95-36-BH40-F5-3 |
CHM-6-30-95-36-BH40-F5-2 |
|
|
3000KSensus |
1315 |
1220 |
1445 |
90 |
CHM-6-30-90-36-BH42-F5-3 |
CHM-6-30-90-36-BH42-F5-2 |
|
1135 |
1055 |
1250 |
95 |
CHM-6-30-95-36-BH42-F5-3 |
CHM-6-30-95-36-BH42-F5-2 |
|
|
3500K |
1655 |
1540 |
1820 |
80 |
CHM-6-35-80-36-BH40-F5-3 |
CHM-6-35-80-36-BH40-F5-2 |
|
1350 |
1255 |
1485 |
90 |
CHM-6-35-90-36-BH40-F5-3 |
CHM-6-35-90-36-BH40-F5-2 |
|
|
1300 |
1205 |
1430 |
95 |
CHM-6-35-95-36-BH40-F5-3 |
CHM-6-35-95-36-BH40-F5-2 |
|
|
3500KSensus |
1310 |
1215 |
1440 |
90 |
CHM-6-35-90-36-BH42-F5-3 |
CHM-6-35-90-36-BH42-F5-2 |
|
4000K |
1605 |
1495 |
1765 |
80 |
CHM-6-40-80-36-BH40-F5-3 |
CHM-6-40-80-36-BH40-F5-2 |
|
1465 |
1360 |
1610 |
90 |
CHM-6-40-90-36-BH40-F5-3 |
CHM-6-40-90-36-BH40-F5-2 |
|
|
1285 |
1195 |
1410 |
95 |
CHM-6-40-95-36-BH40-F5-3 |
CHM-6-40-95-36-BH40-F5-2 |
|
|
5000K |
1635 |
1520 |
1800 |
80 |
CHM-6-50-80-36-BH40-F5-3 |
CHM-6-50-80-36-BH40-F5-2 |
|
1490 |
1385 |
1640 |
90 |
CHM-6-50-90-36-BH40-F5-3 |
CHM-6-50-90-36-BH40-F5-2 |
|
|
1290 |
1200 |
1415 |
95 |
CHM-6-50-95-36-BH40-F5-3 |
CHM-6-50-95-36-BH40-F5-2 |
|
Brojevi delova za naručivanje
Sljedeće tabele opisuju proizvode sa tipičnim fluksom i minimalnim fluksom izmjerenim na 800mA i specificiranim na Tj=85ºC. Vrijednosti na 25ºC su izračunate i prikazane samo kao referenca.
|
CCT |
Izlazni fluks (lm) |
Boja Rendering Indeks (min.) |
Broj dela za naručivanje |
|||
|
Tip. (85ºC) |
Min. (85ºC) |
Izračunato Tip. (25ºC) |
MacAdam Ellipse u 3 koraka |
MacAdam Ellipse u 2 koraka |
||
|
2200K |
1165 |
1085 |
1285 |
90 |
CHM-6-22-90-18-BH40-F5-3 |
CHM-6-22-90-18-BH40-F5-2 |
|
2400K |
1240 |
1150 |
1360 |
90 |
CHM-6-24-90-18-BH40-F5-3 |
CHM-6-24-90-18-BH40-F5-2 |
|
2700K |
1490 |
1385 |
1640 |
80 |
CHM-6-27-80-18-BH40-F5-3 |
CHM-6-27-80-18-BH40-F5-2 |
|
1300 |
1205 |
1430 |
90 |
CHM-6-27-90-18-BH40-F5-3 |
CHM-6-27-90-18-BH40-F5-2 |
|
|
1085 |
1010 |
1195 |
95 |
CHM-6-27-95-18-BH40-F5-3 |
CHM-6-27-95-18-BH40-F5-2 |
|
|
2700KSensus |
1260 |
1175 |
1385 |
90 |
CHM-6-27-90-18-BH42-F5-3 |
CHM-6-27-90-18-BH42-F5-2 |
|
3000K |
1560 |
1450 |
1715 |
80 |
CHM-6-30-80-18-BH40-F5-3 |
CHM-6-30-80-18-BH40-F5-2 |
|
1355 |
1260 |
1490 |
90 |
CHM-6-30-90-18-BH40-F5-3 |
CHM-6-30-90-18-BH40-F5-2 |
|
|
1170 |
1085 |
1285 |
95 |
CHM-6-30-95-18-BH40-F5-3 |
CHM-6-30-95-18-BH40-F5-2 |
|
|
3000KSensus |
1315 |
1220 |
1445 |
90 |
CHM-6-30-90-18-BH42-F5-3 |
CHM-6-30-90-18-BH42-F5-2 |
|
1135 |
1055 |
1250 |
95 |
CHM-6-30-95-18-BH42-F5-3 |
CHM-6-30-95-18-BH42-F5-2 |
|
|
3500K |
1655 |
1540 |
1820 |
80 |
CHM-6-35-80-18-BH40-F5-3 |
CHM-6-35-80-18-BH40-F5-2 |
|
1350 |
1255 |
1485 |
90 |
CHM-6-35-90-18-BH40-F5-3 |
CHM-6-35-90-18-BH40-F5-2 |
|
|
1300 |
1205 |
1430 |
95 |
CHM-6-35-95-18-BH40-F5-3 |
CHM-6-35-95-18-BH40-F5-2 |
|
|
3500KSensus |
1310 |
1215 |
1440 |
90 |
CHM-6-35-90-18-BH42-F5-3 |
CHM-6-35-90-18-BH42-F5-2 |
|
4000K |
1605 |
1495 |
1765 |
80 |
CHM-6-40-80-18-BH40-F5-3 |
CHM-6-40-80-18-BH40-F5-2 |
|
1465 |
1360 |
1610 |
90 |
CHM-6-40-90-18-BH40-F5-3 |
CHM-6-40-90-18-BH40-F5-2 |
|
|
1285 |
1195 |
1410 |
95 |
CHM-6-40-95-18-BH40-F5-3 |
CHM-6-40-95-18-BH40-F5-2 |
|
|
5000K |
1635 |
1520 |
1800 |
80 |
CHM-6-50-80-18-BH40-F5-3 |
CHM-6-50-80-18-BH40-F5-2 |
|
1490 |
1385 |
1640 |
90 |
CHM-6-50-90-18-BH40-F5-3 |
CHM-6-50-90-18-BH40-F5-2 |
|
|
1290 |
1200 |
1415 |
95 |
CHM-6-50-95-18-BH40-F5-3 |
CHM-6-50-95-18-BH40-F5-2 |
|
Brojevi delova za naručivanje
Sljedeće tabele opisuju proizvode sa tipičnim fluksom i minimalnim fluksom izmjerenim na 700mA i specificiranim na Tj=85ºC. Vrijednosti na 25ºC su izračunate i prikazane samo kao referenca.
|
CCT |
Izlazni fluks (lm) |
Boja Rendering Indeks (min.) |
Broj dela za naručivanje |
|||
|
Tip. (85ºC) |
Min. (85ºC) |
Izračunato Tip. (25ºC) |
MacAdam Ellipse u 3 koraka |
MacAdam Ellipse u 2 koraka |
||
|
2200K |
2060 |
1915 |
2265 |
90 |
CHM-9-22-90-36-BH40-F5-3 |
CHM-9-22-90-36-BH40-F5-2 |
|
2400K |
2255 |
2095 |
2480 |
90 |
CHM-9-24-90-36-BH40-F5-3 |
CHM-9-24-90-36-BH40-F5-2 |
|
2700K |
2715 |
2525 |
2985 |
80 |
CHM-9-27-80-36-BH40-F5-3 |
CHM-9-27-80-36-BH40-F5-2 |
|
2365 |
2200 |
2600 |
90 |
CHM-9-27-90-36-BH40-F5-3 |
CHM-9-27-90-36-BH40-F5-2 |
|
|
1975 |
1835 |
2170 |
95 |
CHM-9-27-95-36-BH40-F5-3 |
CHM-9-27-95-36-BH40-F5-2 |
|
|
2700KSensus |
2305 |
2140 |
2535 |
90 |
CHM-9-27-90-36-BH42-F5-3 |
CHM-9-27-90-36-BH42-F5-2 |
|
3000K |
2840 |
2640 |
3125 |
80 |
CHM-9-30-80-36-BH40-F5-3 |
CHM-9-30-80-36-BH40-F5-2 |
|
2470 |
2295 |
2715 |
90 |
CHM-9-30-90-36-BH40-F5-3 |
CHM-9-30-90-36-BH40-F5-2 |
|
|
2125 |
1980 |
2340 |
95 |
CHM-9-30-95-36-BH40-F5-3 |
CHM-9-30-95-36-BH40-F5-2 |
|
|
3000KSensus |
2405 |
2235 |
2645 |
90 |
CHM-9-30-90-36-BH42-F5-3 |
CHM-9-30-90-36-BH42-F5-2 |
|
2070 |
1925 |
2275 |
95 |
CHM-9-30-95-36-BH42-F5-3 |
CHM-9-30-95-36-BH42-F5-2 |
|
|
3500K |
3010 |
2800 |
3310 |
80 |
CHM-9-35-80-36-BH40-F5-3 |
CHM-9-35-80-36-BH40-F5-2 |
|
2460 |
2290 |
2705 |
90 |
CHM-9-35-90-36-BH40-F5-3 |
CHM-9-35-90-36-BH40-F5-2 |
|
|
2110 |
1960 |
2320 |
95 |
CHM-9-35-95-36-BH40-F5-3 |
CHM-9-35-95-36-BH40-F5-2 |
|
|
3500KSensus |
2395 |
2225 |
2635 |
90 |
CHM-9-35-90-36-BH42-F5-3 |
CHM-9-35-90-36-BH42-F5-2 |
|
4000K |
2925 |
2720 |
3215 |
80 |
CHM-9-40-80-36-BH40-F5-3 |
CHM-9-40-80-36-BH40-F5-2 |
|
2665 |
2480 |
2930 |
90 |
CHM-9-40-90-36-BH40-F5-3 |
CHM-9-40-90-36-BH40-F5-2 |
|
|
2335 |
2175 |
2570 |
95 |
CHM-9-40-95-36-BH40-F5-3 |
CHM-9-40-95-36-BH40-F5-2 |
|
|
5000K |
2980 |
2770 |
3280 |
80 |
CHM-9-50-80-36-BH40-F5-3 |
CHM-9-50-80-36-BH40-F5-2 |
|
2715 |
2525 |
2985 |
90 |
CHM-9-50-90-36-BH40-F5-3 |
CHM-9-50-90-36-BH40-F5-2 |
|
|
2345 |
2180 |
2580 |
95 |
CHM-9-50-95-36-BH40-F5-3 |
CHM-9-50-95-36-BH40-F5-2 |
|
CHM-4 Operating karakteristics1
|
Parametar-36V |
Simbol |
Minimum |
Tipično |
Maksimum |
Jedinica |
|
Forward Current2 |
Ako |
200 |
500 |
mA |
|
|
Forward Voltage3 |
Vf |
31.0 |
35.3 |
39.0 |
V |
|
Parametar-18V |
Simbol |
Minimum |
Tipično |
Maksimum |
Jedinica |
|
Forward Current2 |
Ako |
400 |
1000 |
mA |
|
|
Forward Voltage3 |
Vf |
15.4 |
17.6 |
19.5 |
V |
|
Parametar |
Simbol |
Minimum |
Tipično |
Maksimum |
Jedinica |
|
Snaga |
7.5 |
13.7 |
W |
||
|
Temperatura radnog kućišta |
T c |
120 |
ºC |
||
|
Prečnik površine koja emituje svetlost |
LES |
4.5 |
mm |
||
|
Toplinska otpornost (spoj-na-kućište) |
Θjc |
1.7 |
ºC/W |
||
|
Temperatura spoja |
Tj |
140 |
ºC |
||
|
Ugao gledanja |
120 |
Stepen |
HM-6 Operating karakteristics1
|
Parametar-36V |
Simbol |
Minimum |
Tipično |
Maksimum |
Jedinica |
|
Forward Current2 |
Ako |
400 |
750 |
mA |
|
|
Forward Voltage3 |
Vf |
31.0 |
35..3 |
38.5 |
V |
|
Parametar-18V |
Simbol |
Minimum |
Tipično |
Maksimum |
Jedinica |
|
Forward Current2 |
Ako |
800 |
1500 |
mA |
|
|
Forward Voltage3 |
Vf |
15.4 |
17.6 |
19.2 |
V |
|
Parametar |
Simbol |
Minimum |
Tipično |
Maksimum |
Jedinica |
|
Snaga |
15.2 |
27.2 |
W |
||
|
Temperatura radnog kućišta |
T c |
120 |
ºC |
||
|
Prečnik površine koja emituje svetlost |
LES |
6.3 |
mm |
||
|
Toplinska otpornost (spoj-na-kućište) |
Θjc |
1.0 |
ºC/W |
||
|
Temperatura spoja |
Tj |
140 |
ºC |
||
|
Ugao gledanja |
120 |
Stepen |
CHM-9 Operating karakteristics1
|
Parametar-36V |
Simbol |
Minimum |
Tipično |
Maksimum |
Jedinica |
|
Forward Current2 |
Ako |
700 |
1500 |
mA |
|
|
Forward Voltage3 |
Vf |
31.3 |
34.8 |
38.0 |
V |
|
Parametar |
Simbol |
Minimum |
Tipično |
Maksimum |
Jedinica |
|
Snaga |
24.3 |
57 |
W |
||
|
Temperatura radnog kućišta |
T c |
120 |
ºC |
||
|
Prečnik površine koja emituje svetlost |
LES |
9.0 |
mm |
||
|
Toplinska otpornost (spoj-na-kućište) |
Θjc |
0.5 |
ºC/W |
||
|
Temperatura spoja |
Tj |
0.63 |
140 |
ºC |
|
|
Ugao gledanja |
120 |
Stepen |
Popularni tagovi: visoke gustoće gen 4, Kina visoke gustine gen 4 proizvođači, dobavljači, tvornica, CBT-90-B-C11-KJ300, CBT-90-G-C11-JK200, CXM-9-27-90-36-AC10-F3-3, CXM-9-35-80-36-AA10-F3-3, SFT-40-W65S-F50-N4652, SST-20-WDS-A120-L3501
Pošaljite upit
Moglo bi vam se i svidjeti
